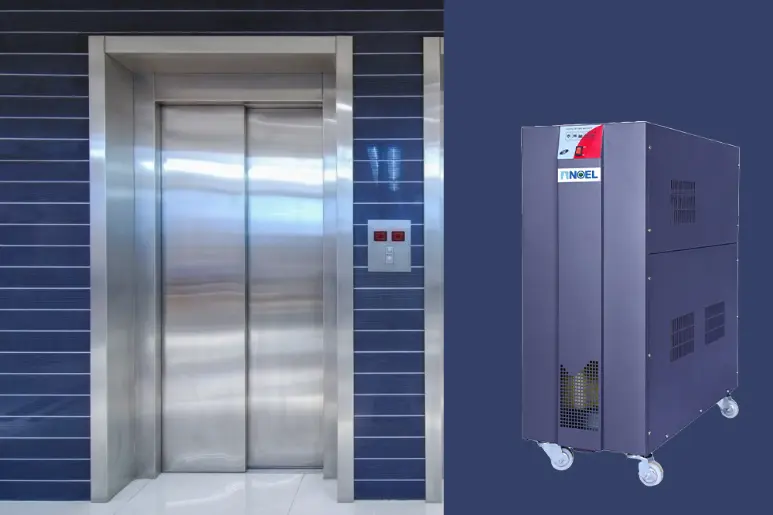

Lift Inverters – UPS
Increased power shortage and shutdown has made LIFT INVERTER - UPS an essential factor at every place including offices, multi-storied building, manufacturing plants, shopping malls and so on. NOEL LIFT INVERTER - UPS has high capacity power generation systems that are capable of running lift/elevators, 3 phase operated critical CNC machines and many more 3 phase high power applications. When the electricity is available the Lift is directly connected to main power and only a small portion of the main supply is used for charging the storage batteries. In the event of an electricity failure the lift inverter automatically senses power failure and generates AC power from the batteries
BUY NOW
- Capacity : 6 KVA /7.5 KVA / 9KVA/12 KV,
- Input : 3 Phase, 4 wire,
- Voltage range : 290- 450 volts,
- Battery voltage : 72v/ 96v /120vdc,
- Output : 3 Phase, 4 wire, Output voltage on Inverter : 400 Volts AC +/- 2 % ,
- Wave Form : Sine Wave, Technology : APWM , Digital 12Khz Pulse width modulation,
- Protection : Under voltage, Over Voltage cut off, Single phase prevention, Over Load short circuit, Battery low alarm, Battery low trip.
Technical Specification
NGP+ Series – 10~20kVA
BUY NOW
NGP Series 6~10kVA
BUY NOW
